16″ Standing Seam Metal Roof Panels

For handsome looks, maximum performance and easy installation, choose our 16″ standing seam minor rib (MR) metal roofing panels. The 16″ Standing Seam minor rib roofing panels are designed as a vertical roof panel. This style of premium metal roofing is designed to conceal fasteners creating a sleek, durable steel roof. Most colors carry an Energy Star rating and that is going to help save money on your utility bills and have you qualify for a tax credit at the end of the year.

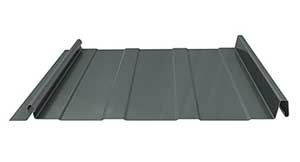

16" Standing Seam (Minor Rib)

16 Standing Seam Panel Profile

It’s very possible that This panel’s smart design and popular colors add style and beauty to any building. Because standing seam panels are made of steel, the beauty is more than skin deep. Metal roofing is made to withstand the elements – wind, rain, fire, hail, snow and thy day-to-day challenges that mother nature will throw down.

Snap-together panels and pre-punched fastener slots make installation quick and easy. In many cases, the 16″ standing seam panel can be installed over an existing roof saving time and money.

16″ Standing Seam Minor Rib Specifications:

  • Coverage Width – 16″
  • Rib Height – 1″
  • Minimum Slope – 3:12
  • Panel Attachment – Concealed Fastening System
  • Texture – Striations (standard); Minor Rib Striations (optional)
  • Finish Type – Siliconized Polyester
  • Standard stiffening ribs for added strength
  • 26 gauge steel with heavy duty galvanized coating
  • Lightweight, energy efficient and fire resistant
  • Factory applied sealant for optimum weather tightness
  • Easy to install
  • Custom cut to length (min 4 feet)
  • Minimum Order: 1000 square feet

UL 580 ratings are available, as well as UL 790, Class A for external fire, roof assembly for UL 263 for internal fire and the UL 2218 Class 4 impact rating.

Florida Approval: 16″ Standing Seam carries Florida approval (FL# 11903.4). Florida product approval is the approval of products and systems, which comprise the building envelope and structural frame, for compliance with the structural requirements of the Florida Building Code.

Texas Department of Insurance Approval (RC-357): TWIA provides windstorm and hail insurance in areas exposed to hurricanes and currently provides windstorm and hail coverage in the
following 14 “first tier” Texas coastal counties: Aransas, Brazoria, Calhoun, Cameron, Chambers, Galveston, Jefferson, Kenedy, Kleberg, Matagorda, Nueces, Refugio, San Patricio and Willacy.

Product Warranty:

  • 40-year film
  • 30-year chalk and fade warranty for painted

Available Colors:

Burnished SlateBurnished Slate
Charcoal GrayCharcoal Gray
Gray
Gray

Hawaiian BlueHawaiian Blue
Ivy Green
Ivy Green
Rustic Red
Rustic Red
Koko Brown
Koko Brown

Light Stone
Light Stone
Saddle Tan
Saddle TanPolar WhitePolar White
Regal White
Regal White

Color Visualizer:

Play with the visualizer to see what different colors of panels look like on a structure. Try on different roofing profiles and colors!  Upload a picture of your building and get an idea of what a new metal roof will look like on your structure!  Save your project, print it, email it.  Click here to open our metal roofing visualizer in a new window.

Metal Roofing Visualizer

Actual panel and shingle colors may vary from the color on your screen due to monitor color limitations.

16″ Standing Seam Installation Instructions:
